High Pass . . . Low Shelving ?

Postby Situation » Wed Apr 25, 2012 12:33 pm

What's the different between a high
pass filter and a low shelving EQ
User avatar
Situation
Regular
Posts: 89
Joined: Tue Apr 10, 2012 11:00 pm

Re: High Pass . . . Low Shelving ?

Postby Sam Inglis » Wed Apr 25, 2012 12:36 pm

A high-pass filter progressively eliminates more and more of the frequencies below the cutoff point, whereas a low shelving cut attenuates all frequencies below the cutoff point equally.
Sam Inglis
Frequent Poster
Posts: 1916
Joined: Fri Dec 15, 2000 12:00 am

Re: High Pass . . . Low Shelving ?

Postby Situation » Wed Apr 25, 2012 1:17 pm

thanx
User avatar
Situation
Regular
Posts: 89
Joined: Tue Apr 10, 2012 11:00 pm

Re: High Pass . . . Low Shelving ?

Postby SafeandSound Mastering » Wed Apr 25, 2012 2:53 pm

Have a little look here:

How to use an EQ

Cheers

SafeandSound Mastering
User avatar
SafeandSound Mastering
Frequent Poster
Posts: 1032
Joined: Sun Mar 23, 2008 12:00 am
Location: London UK

Re: High Pass . . . Low Shelving ?

Postby Hugh Robjohns » Wed Apr 25, 2012 2:59 pm

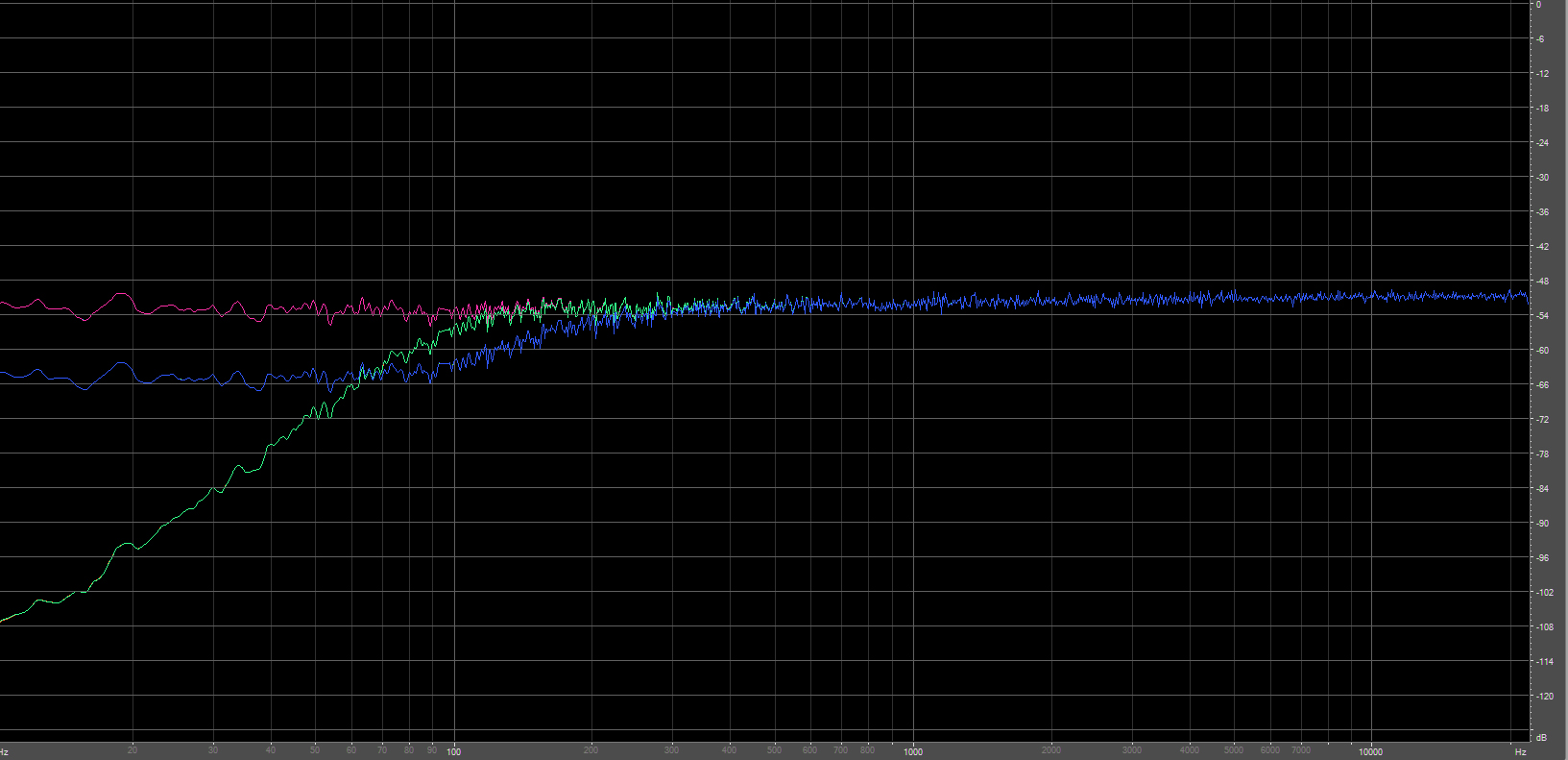

This image shows the effect of a 3rd order (18dB/octave) high-pass filter with a turnover at 100Hz (green line), and a low shelf cut of -12dB, also set to 100Hz (blue line) on a white noise signal (red line).


As you can see, the high pass filter's slope just goes on down, providing ever-more attenuation as the frequency gets lower, where as the low shelf looks just like a shelf -- it reduces the signal to a set level below the turnover frequency, but no more.

Shelf equalisers can also boost the signal, whereas a filter can only cut.
